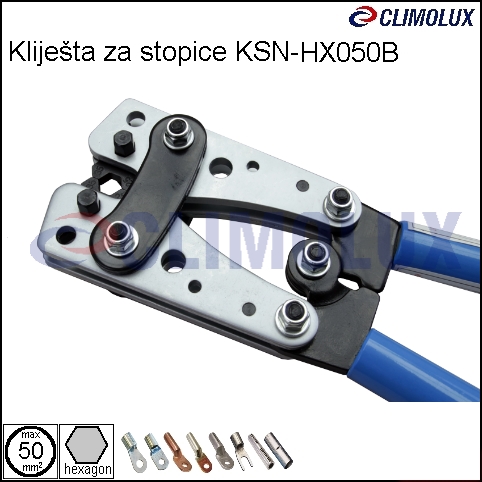

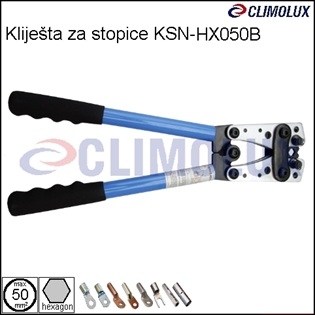

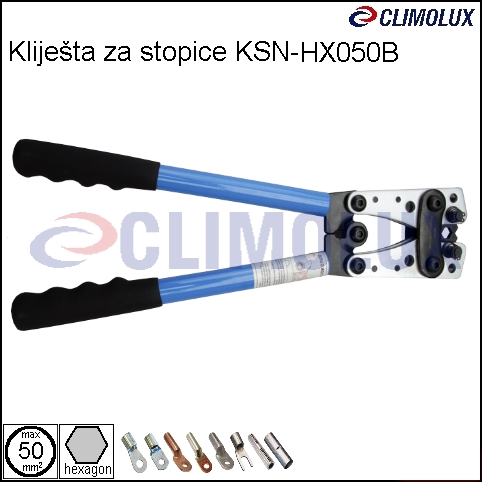

Crimping piler for noninsulated crimping terminals KSN-HX050B

Crimping piler for noninsulated crimping terminals KSN-HX050B
item-number : 492014



product code			crimping form
492014	L = 390 mm	6 - 50 mm2		1.300 g



-With rotate adjustable crimping die. The die makes hexagon profile crimping shape.

AWG size on the lug	crimpimg mark	Cu wires (mm2)	Al wires (mm2)
10	1	6	4
8	2	10	6
6	3	16	10
4	4	25	16
2	5	35	25
2 - 0	H6	35-50	25-35
