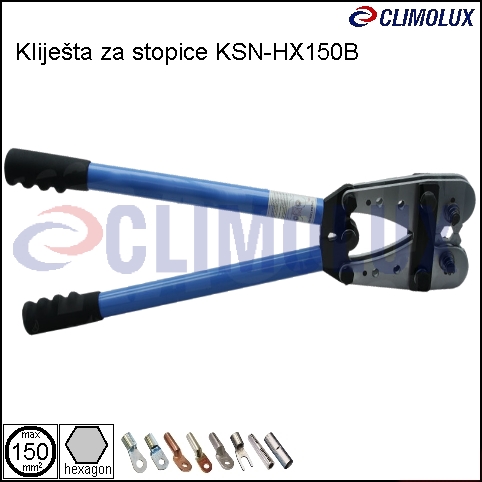

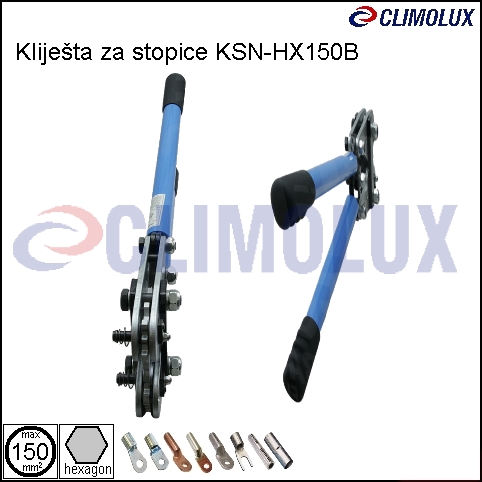

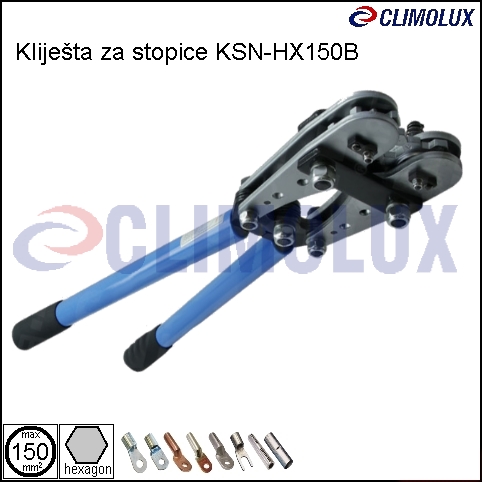

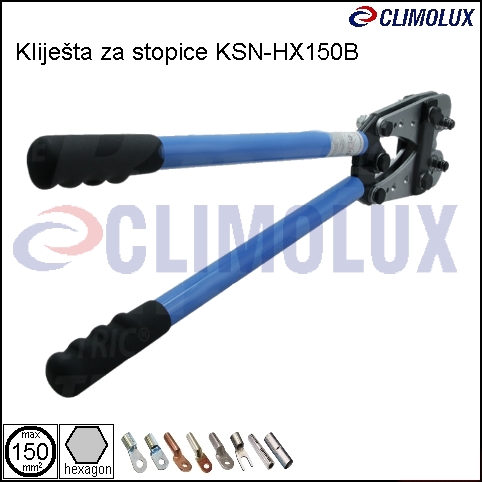

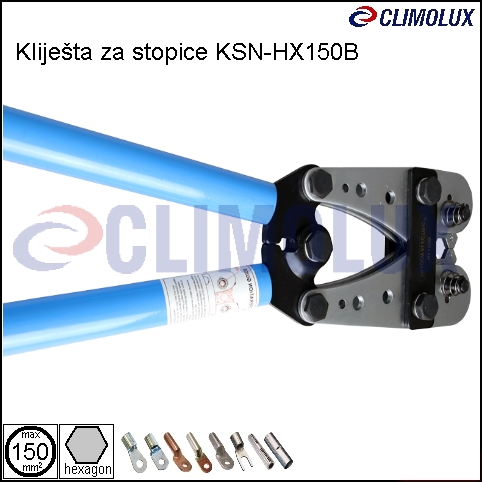

Crimping piler for noninsulated crimping terminals KSN-HX150B

123,33 €
Add to Cart

Crimping piler for noninsulated crimping terminals KSN-HX150B
item-number : 492012



product
code 		crimping
form
492012L = 650 mm25 - 150 mm23.200 g



-With rotate adjustable crimping die. The die makes hexagon profile crimping shape.

AWG size
on the lug
crimpimg
mark
Cu wire
(mm2)
Al wire
(mm2)
4
25
25
16
2
35
35
25
2 - 0
50
35-50
25-35
0 - 00
70
50-70
35-50
00 - 000
95
70-95
50-70
000 - 250MCM
120
95-120
70-95
250MCM - 300MCM
150
120-150
95-120
