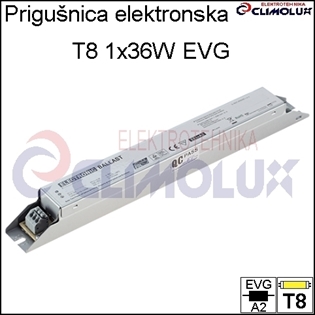

Electronic ballasts for fluorescent tube T8 1x36W EVG-FV

Electronic ballasts for fluorescent tube T8 1x36W EVG-FV
item-number: 491391



product code		L (mm)	W (mm)	H (mm)
491391	1 x 36 W	275	28	27




Technical parameters:

Nominal voltage:	220-240 V, 50/60 Hz
power Factor:	0,98
Total Harmonic Distortion (THD):	<20 %
Max. output voltage:	450 V AC efektivni
Accepted cable cross-section:	0,5 – 0,75 mm2
Energy class:	A2
Protection class:	I.
Ambient temperature	-25 °C– 50 °C
The hottest spot ballasts (tc):	70 °C(2x58 W: 75 °C)

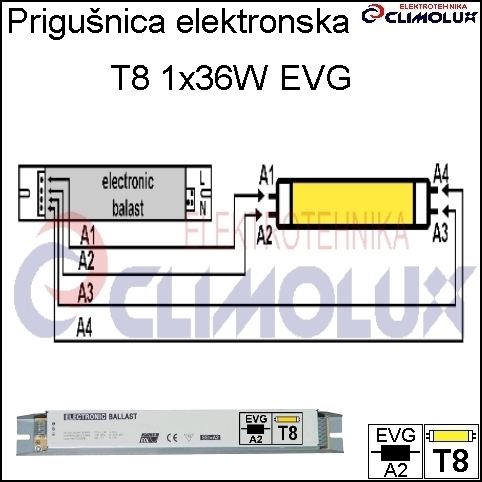

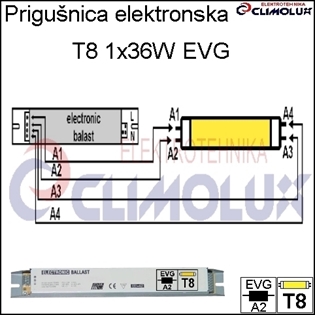

Circuit diagram:


These ballasts can be installed in any lamp using T8 type fluorescent tube, in function of the rated power.
