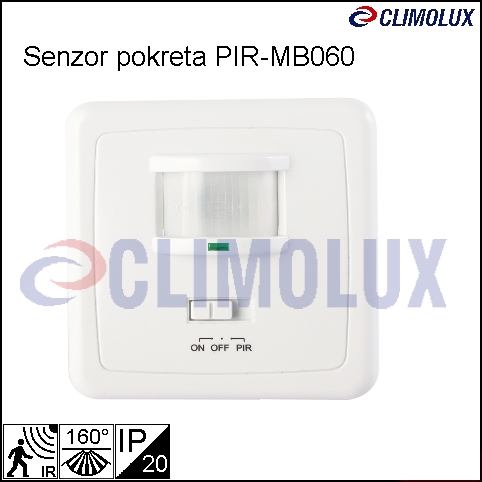

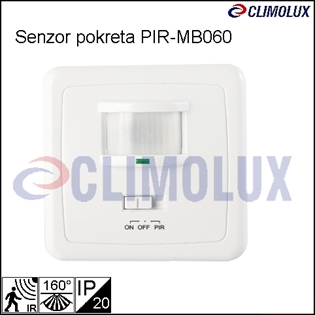

Motions sensors recesed PIR-MB060

Motions sensors recesed PIR-MB060

item number : 494426

product code				IP...	L x W x H (mm)
494426	160°	3 - 2000 lux	10s ... 7min	IP 20	80 × 80 × 34	Flush mounting

IR sensor consists of infrared sensor sensitivity and electronic switches with low-consumption, which helps to fit electrical appliances (lightig body in various venues) in the industry, residential and commercial buildings. If the sensor area living being, integrates seamlessly connected load (nrp.reflektor). It can be adjusted both horizontally and vertically according to the user's needs and achieve the sensing area.

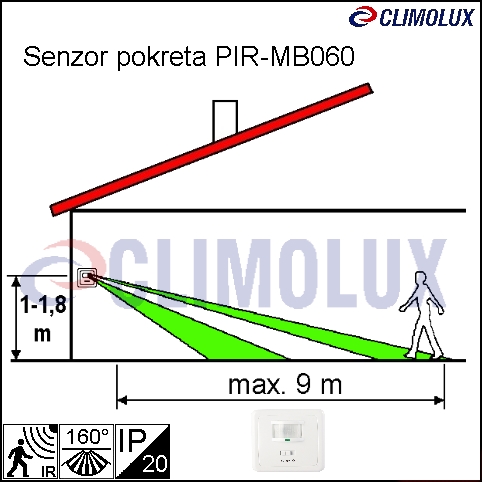

There is a relation between the motion and sensitivity, as shown on the enclosed drawings. Depending on the ambient illumination can be changed mode from day to night. The sensors are not suitable for switching fluorescent tubes with compensation or lighting with fluorescent tubes.
