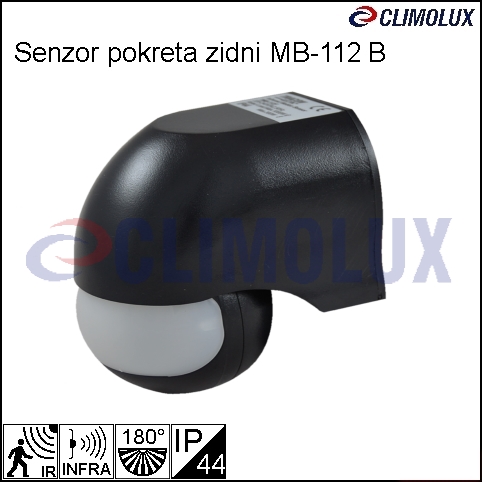

Infrared motion sensor IP44, PIR MB-112-B

9,25 €

Infrared motion sensor IP44, PIR MB-112-B

item-number: 494430



product
code
IP...

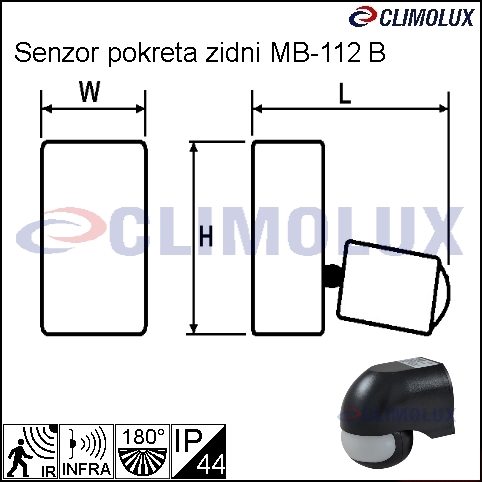

D × H

(mm)

494430 183 - 2000 lux10 s ... 15 minIP 4491 × 84 × 63surface mounting



light
 sources

maximum plugged power1.000W
800W
300W
300W
1,8 - 2,5 m
<12 m0,6 do 1,5 m/s

The passive infrared motion sensors (PIR) are sensing the shift of heat emitted by creatures and in case of appropriate value of shift the relay inside of sensor switch. Because of this operational method the sensor have to see the moving object otherwise the relay will not switch.

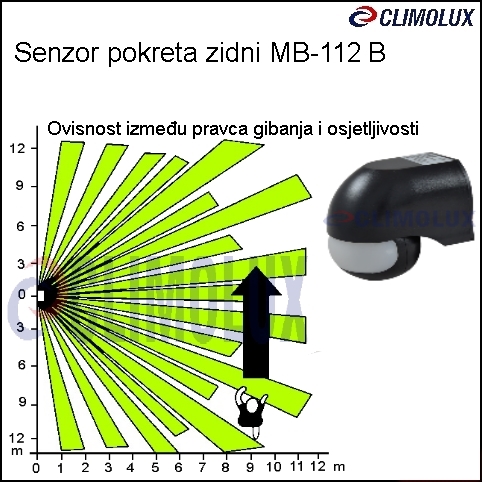

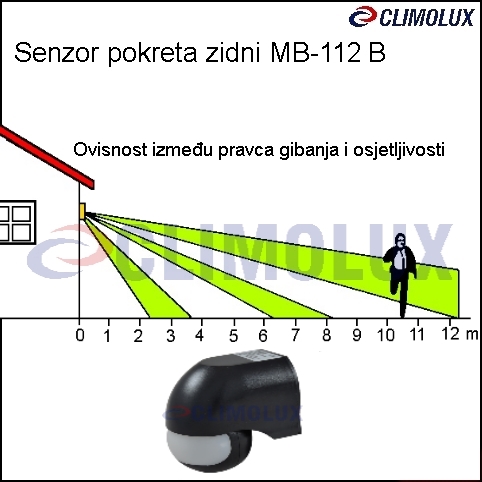

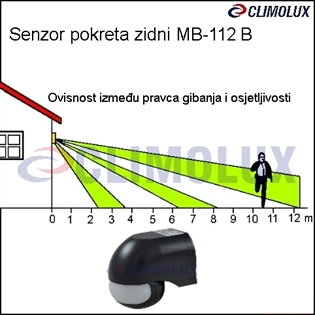

The sensitivity of device for transverse movements is higher, for opposite movements is smaller so the devices including one sensor are recommended to install parallel with the expected direction of motion.
