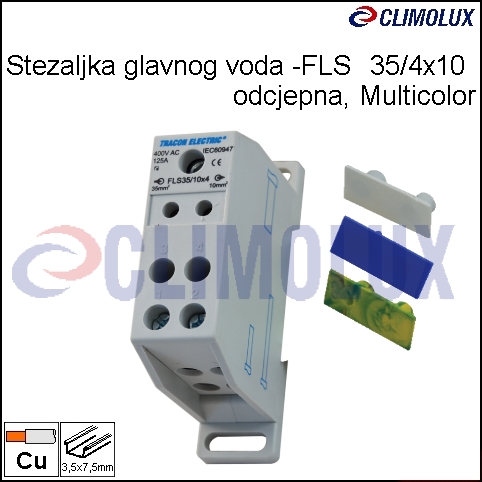

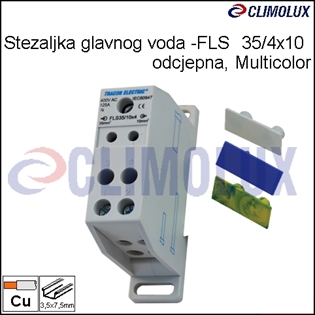

Main line branch terminals FLS 35/4x10 Multicolor

17,77 €

Main line branch terminals FLS 35/4x10 Multicolor
item-number: 492343



product
code
W1
(mm)
W2
(mm)
492343replaceable color plates16,320,4



In

1×35
1×25
4×10
4×6
125 A
1 x M8
  4 x M5
Technical data:
 Nominal voltage: 400 V AC
 Nominal frequency: 50/60 Hz
 Nominal insulation voltage: 500 V
 Clamp material: brass
 Fastening: to be clapped on rail 35 × 7.5 mm
 Fastening torque: see Appendix
 Degree of protection: IP 20
 Ambient temperature:   -10 °C…+55 °C
