Main line branch terminals FLS 50/4x16 Multicolor

22,66 €

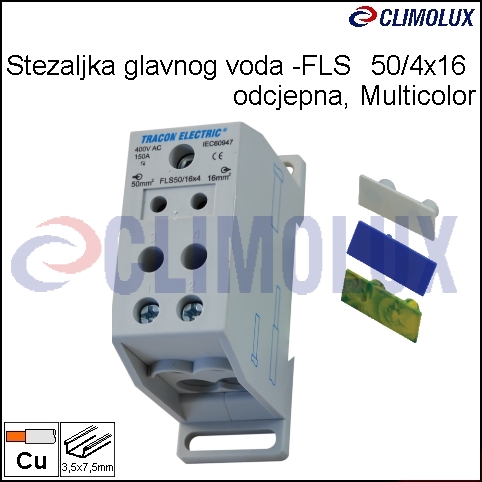

Main line branch terminals FLS 50/4x16 Multicolor
item-number: 492344



product
code
W1

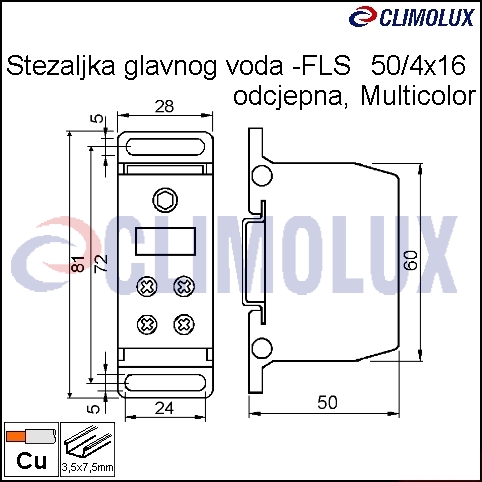

(mm)
W2
(mm)
492344replaceable color plates24,228,2



In

1×50
1×35
4×16
4×10
150 A
1 x M8
  4 x M6
Technical data:
 Nominal voltage: 400 V AC
 Nominal frequency: 50/60 Hz
 Nominal insulation voltage: 500 V
 Clamp material: brass
 Fastening: to be clapped on rail 35 × 7.5 mm
 Fastening torque: see Appendix
 Degree of protection: IP 20
 Ambient temperature:   -10 °C…+55 °C
