Metal distribution cabinet MFE, steel, 400x400x200 IP55

78,34 €

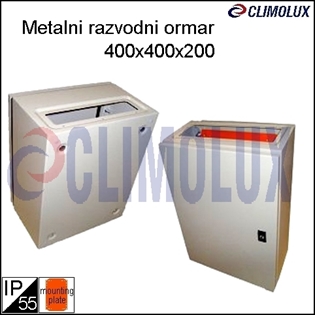

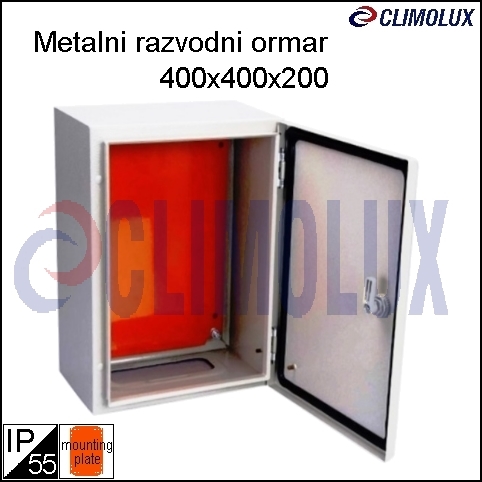

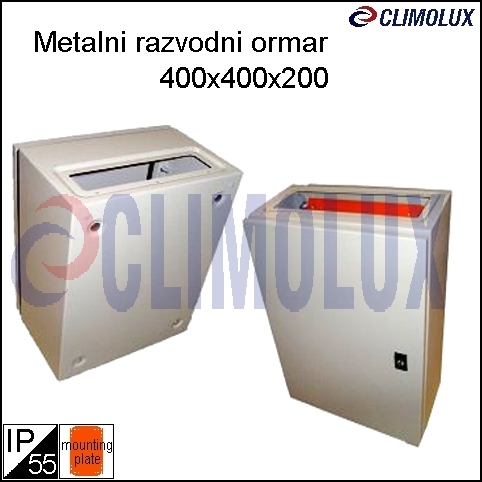

Metal distribution cabinet MFE, steel, 400x400x200 IP55

item-number: 490240

product
code

H x W x D
(mm)

4902401
400 x 400 x 200 with mounting plate

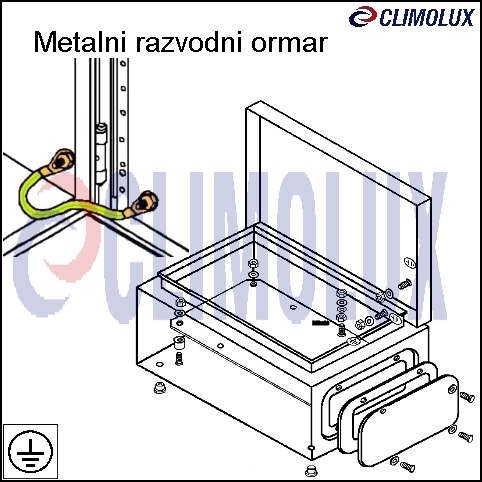

Due to the employed mounting-plate installation technique, the various devices can be placed into the box as needed.
The metal frame affords perfect stability to the structure. The boxes are delivered with doors and mounting plates.
Doors can be closed by handle. Locks and keys are not part of the delivery. The opening direction of the door is changeable with vertical rotation of the box or relocation of the hinge. The Box are provided at one point. We advise to install devices in our boxes up to max. 800 A rated current.
Dimensions (mm)
Plate thickness (mm)
Height
(L)
Width
(W)
Depth
(H)
Body
Door
Rear wall
400
400
200
1
1
1,5
