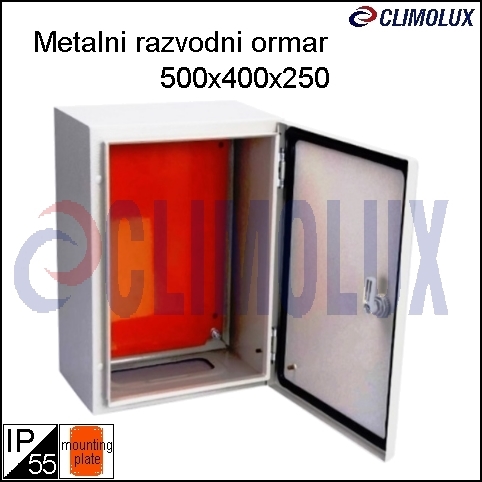

Metal distribution cabinet MFE, steel, 500x400x250 IP55

Metal distribution cabinet MFE, steel, 500x400x250 IP55

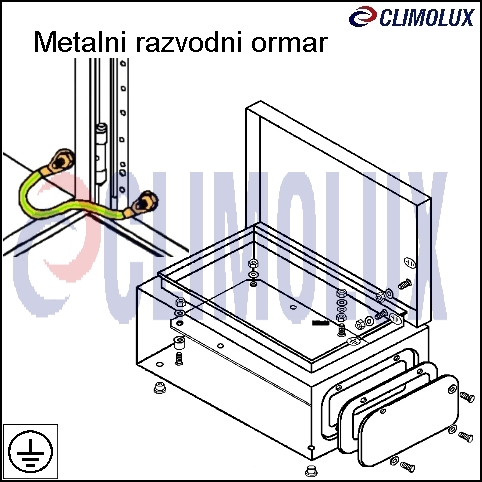

Due to the employed mounting-plate installation technique, the various devices can be placed into the box as needed.
The metal frame affords perfect stability to the structure. The boxes are delivered with doors and mounting plates.
Doors can be closed by handle. Locks and keys are not part of the delivery. The opening direction of the door is changeable with vertical rotation of the box or relocation of the hinge. The Box are provided at one point. We advise to install devices in our boxes up to max. 800 A rated current.

Dimensions (mm)			Plate thickness (mm)
Height (L)	Width (W)	Depth (H)	Body	Door	Rear wall
500	400	250	1,2	1,2	1,5
