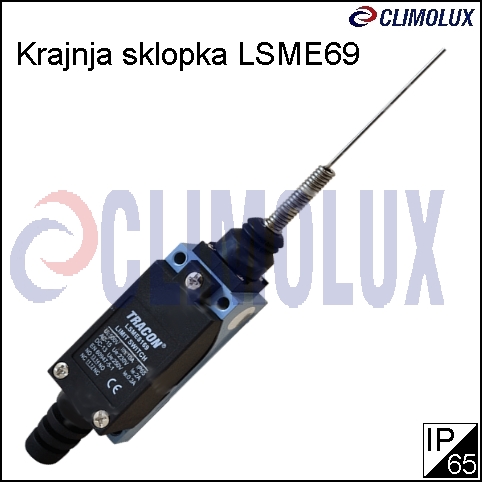

Position switch LSME69 IP65

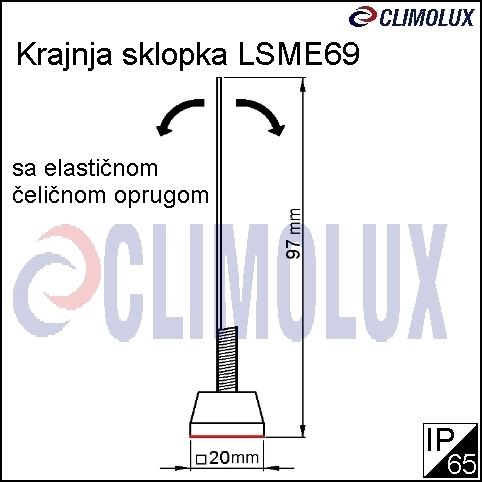

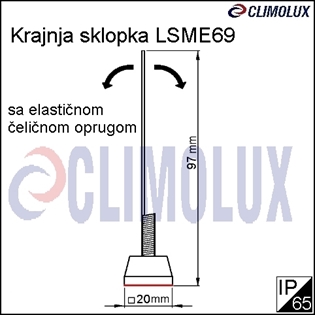

 Technical data: elastic spring rod= 97mm, 1xNO+1xNC, 2A/230V AC-15, 0,3A/250V DC-13, IP65

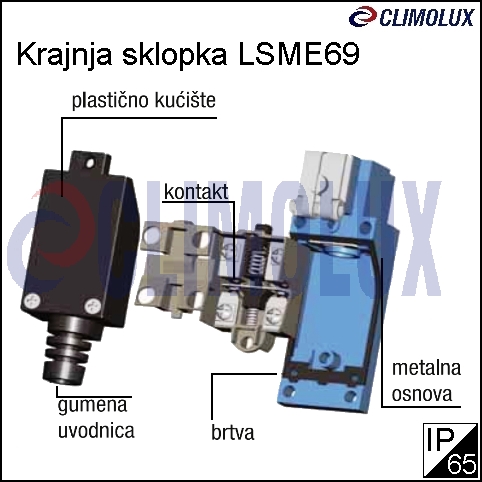

 - double contacts          - massive construction          - plastic and aluminum die-cast          - water- and oil proof

 - double spring mechanism          - long lifetime          - easy wirin



 - Rated operation current Ie; AC-15, 230 V:          2 A

 - Rated operation current Ie; DC-13, 125 V:         0,3 A

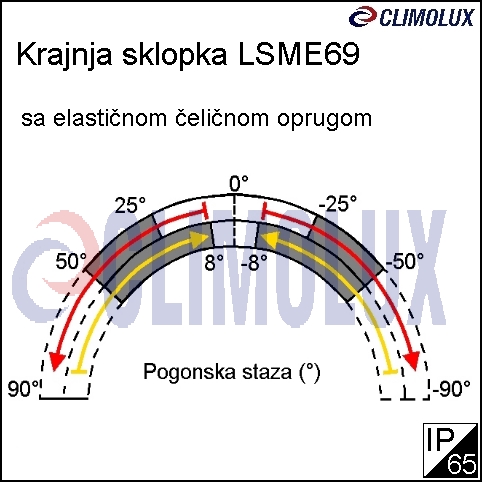

 - Switching function:                                         Slow-action switch

 - Number of contacts as change-over contact:     1

 - Material housing:                                            metal, PVC

 - Type of control element:                                 elastic spring rod

 - Ambient temperature during operating:           -25 ... +55 °C

 - Degree of protection (IP):                               IP65

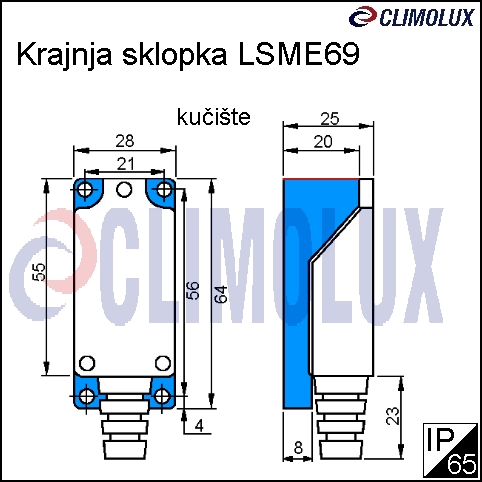

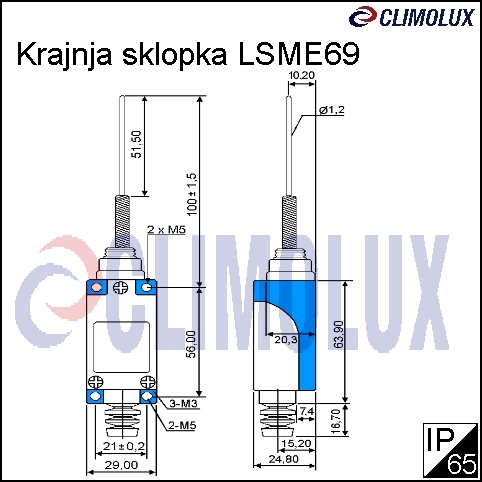

Case dimensions: W: 29 mm                    H : 24,8 mm               L : 63,9 mm
