Radar motion sensor MB-L01D

Radar motion sensor MB-L01D

item number : 495419

product code				IP...	L × W × H (mm)

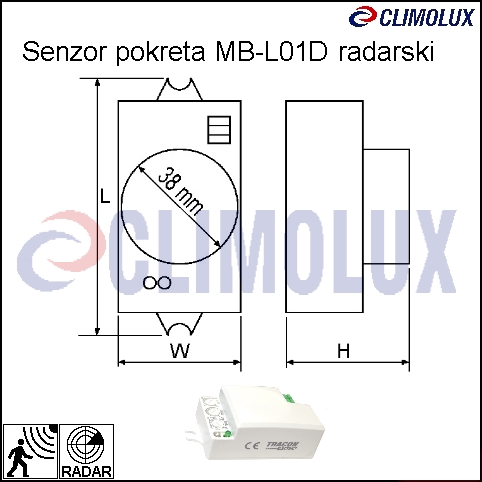

495419	360°	3 - 2000 lux	10 s ... 12 min	IP 20	58 × 41 × 26	Radar motion sensors

Radar motion sensors movement unlike infrared motion sensations and through thin, solid material, and can be installed in a plastic box, suspended ceiling of plasterboard and mineral wool, or lighting fixtures. However, one should take into account that the radar waves do not pass through metal surfaces! Hidden setting has advantages both for aesthetics as well as safety-technical sense. The delay time, sensitivity and inclusion of sensors depending on illumination environment can be equally smoothly regulated.

light sources

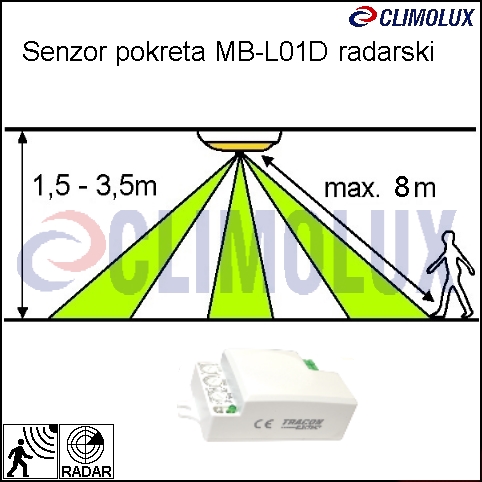

maximum plugged power	500W	400W	200W	200W	1,5 - 1,8 m	1 - 8 m	0,6 do 1,5 m/s

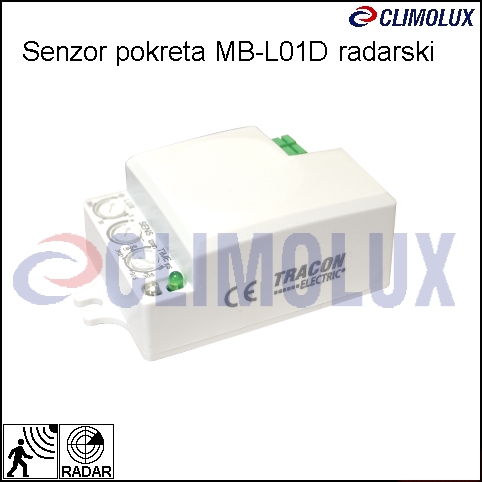

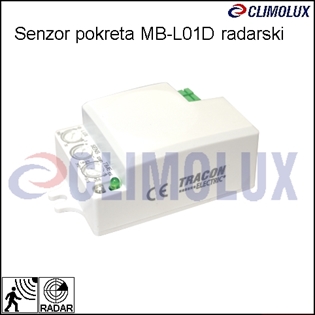

Built-in radar motion sensor MB-L01D:
The small size of this motion sensor makes it suitable to use in luminaries as actuating element. The radar technique enables installation of the sensor undercover of luminaries or behind thin plates or walls. The LED signal lamp informs the user on the operating status of the sensor.Three operating parameters (time delay, sensitivity and ambient light) can be continuously adjusted).
