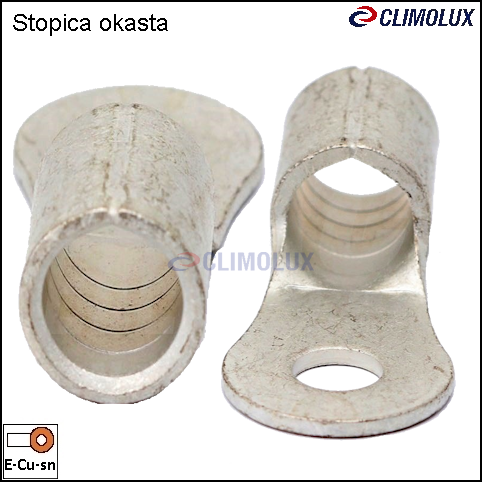

Ring terminal uninsulated 95mm2 M10

2,60 €

Ring terminal uninsulated  95mm2 M10

item-number: 490048


product
code

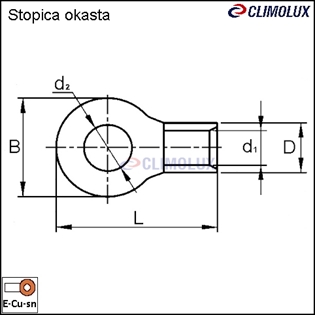

d1
(mm)
d2
(mm)
D
(mm)
L
(mm)
B
(mm)
490048
14,5
10,5
19,5
54
27
120 - 150
95 - 120
50 - 70







-Ring terminal are made of tinned copper,
Ring terminal type cable lugs are suitable for connecting wires of different types and cross sections.
The compounds were inseparable. During the merger should be taken that the material guide (copper, aluminum)ring treminal of the same materialso as to prevent harmful effects of the transition resistance and electrochemical potential difference, and thus
overheating connection points.
