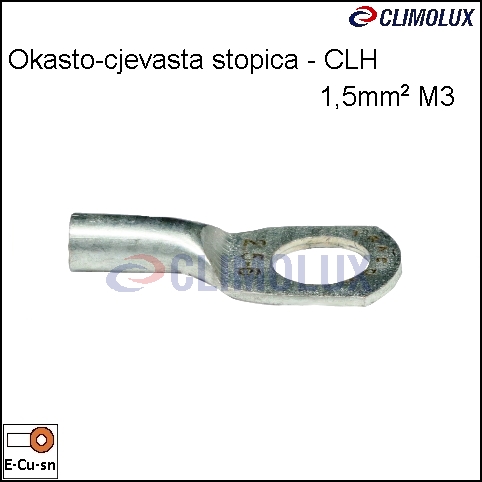

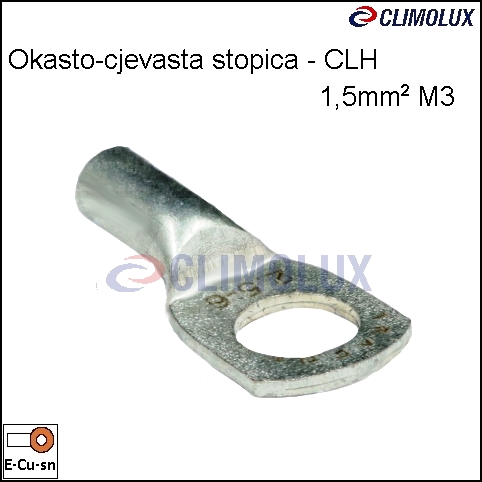

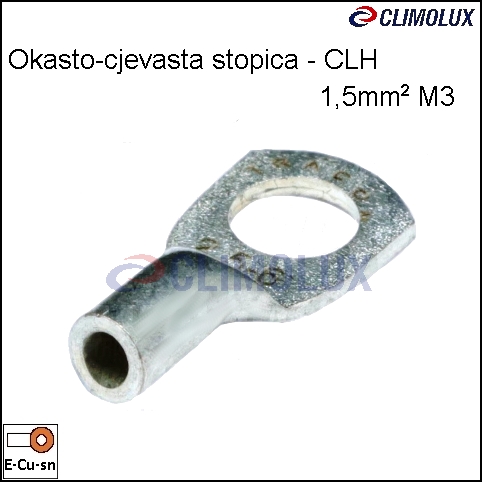

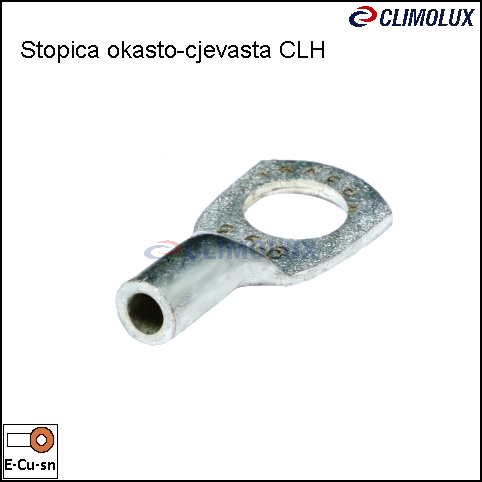

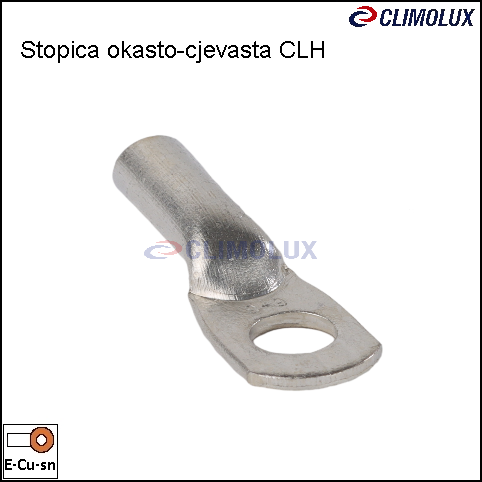

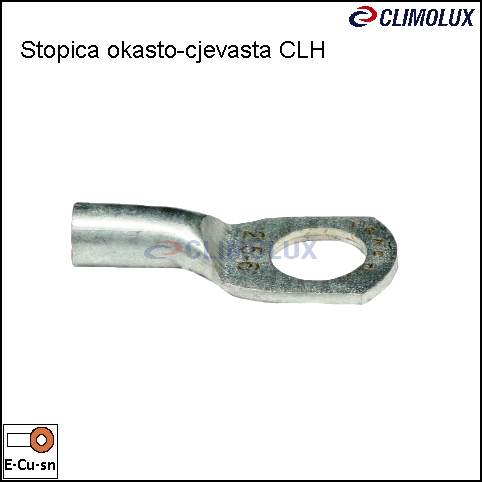

Ring-tube terminal uninsulated CLH 1,5mm2 M3

Ring-tube terminal uninsulated CLH   1,5mm² M3

item-number: 490520

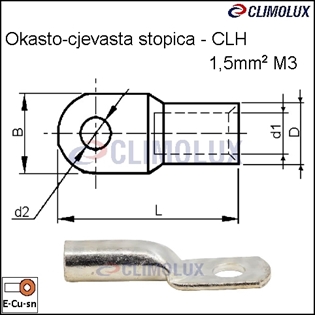

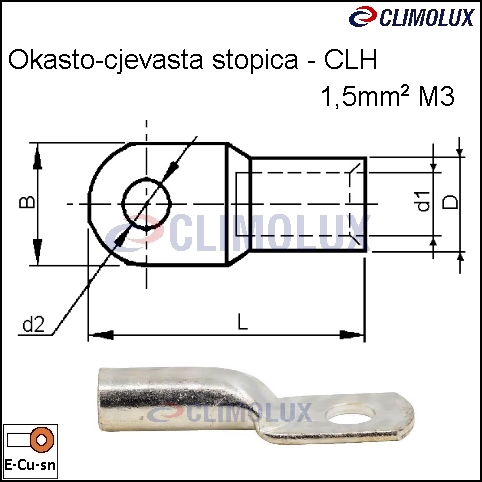

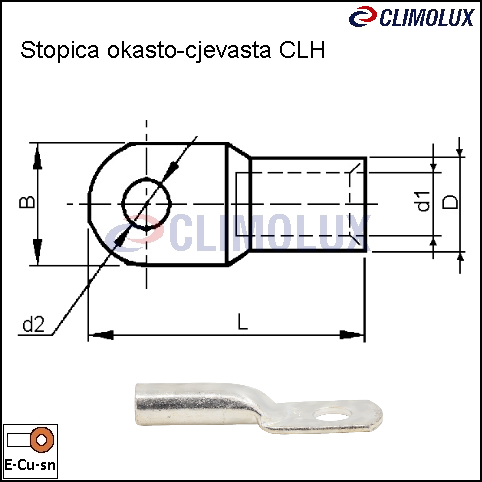

product code	d1 (mm)	d2 (mm)	D (mm)	L (mm)	B (mm)
490520	1,8	3,4	3,7	19,5	8	1,5	1,5	1 - 1,5

-ring terminal are made of tinned copper,

Ring-tube terminal type cable lugs are suitable for connecting wires of different types and cross sections.

The compounds were inseparable. During the merger should be taken that the material guide (copper, aluminum)ring treminal of the same material, so as to prevent harmful effects of the transition resistance and electrochemical potential difference, and thus overheating connection points.
