Surface mounted distribution box 2/24 EDIP IP65

product code: 491731

-Distribution box, surface mounted, transparent door, N/PE rail

-2×12 modul, IP65, 660V AC

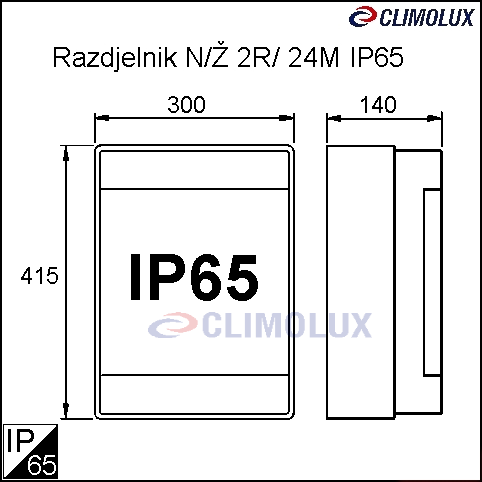

product code		L (mm)	W (mm)	H (mm)
491731	24	415	300	140

They are intended primarily for electrical devices
(current protection switches, circuit breakers, staircase automata, relays, etc.).
The boxes are made of ABS, and installation appliances are located behind the transparent cover. The units are fixed onto the 35 × 7.5 mm to standardization EN 60439-1, 60439-3. To connect neutral and protective conductors shall be 1 copper busbar with clamps.
Their high degree of protection (IP65) satisfies the criteria used in the outdoors.
