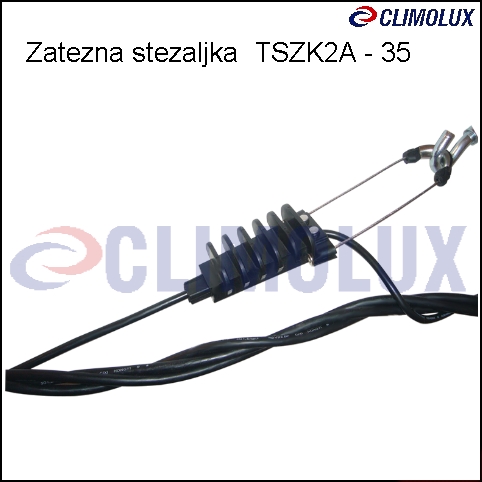

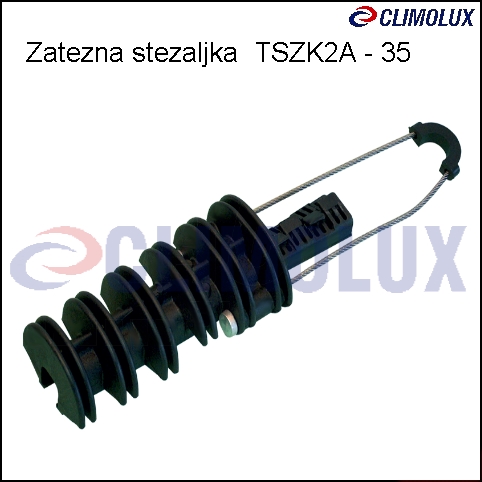

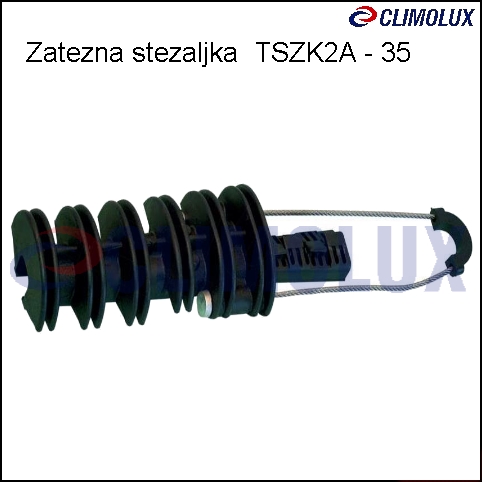

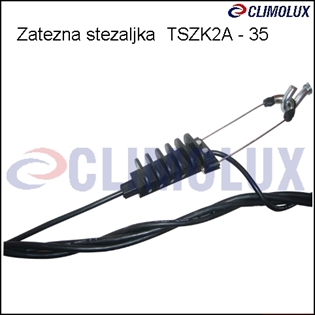

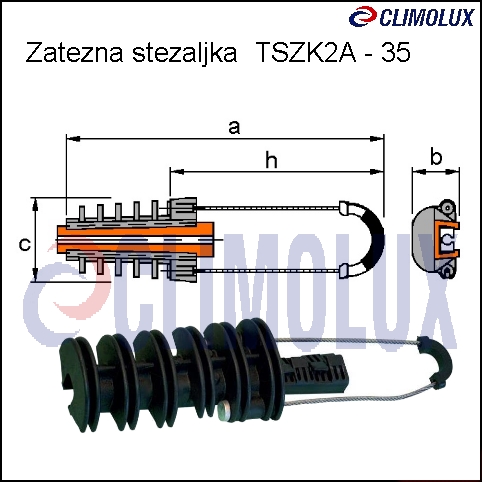

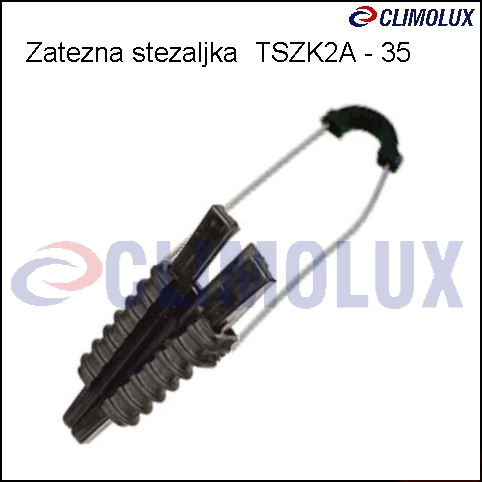

Insulated anchor clamp TSZK2A-35

Insulated anchor clamp TSZK2A-35

item-no.: 491020

With insulated strain clamps the insulated conductor’s straining to the pole can be completed fast and easily, without using any other tool. The neutral wire has to be placed on the gap at the rubber end of the outfit, and the metal clamp has to be hanged onto the hook on the pole. During straining the rubber tightens on the wire; the wire’s weight creates the straining force.

Fittings for insulated aerial cable bounds
These fittings are applicable for quick installation on low voltage insulated aerial cables bounds, in which the neutral core can be loaded by the bound's own weight (e.g. 1-AES, EA2Y,KEVMEX-1, EX type cables), without switching off the live line.
Using insulated fittings and insulated tools, the installation can be performed safely on live network.
The terminations between aerial bounded cables and side lines for houses are easy to perform with insulated piercing connectors. With these fittings work done on the public lighting system is also easy and safe, if the power supply is secured with the attendant core of

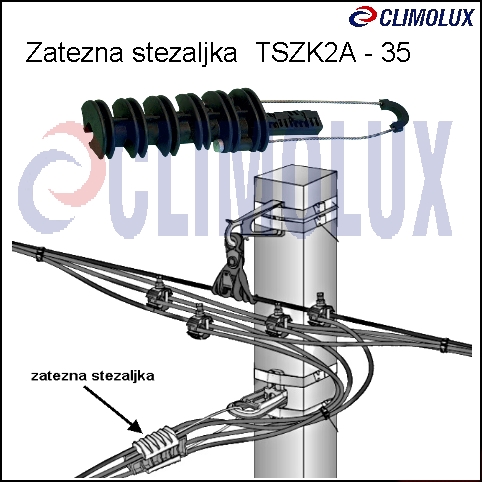

the electric distribution line. Conceptual schemes for aerial bounded cables with mechanically loaded neutral core: see drawings.
