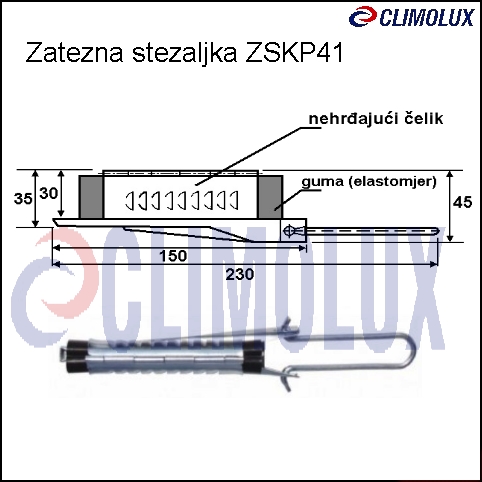

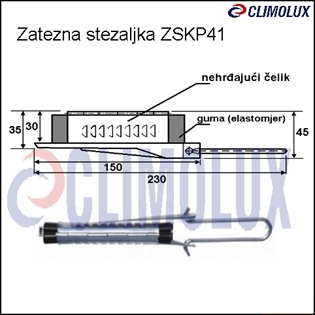

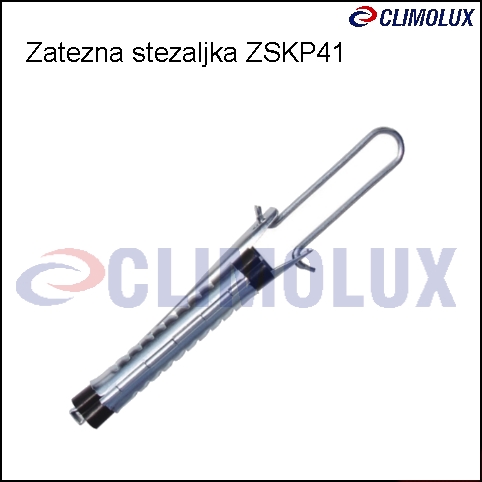

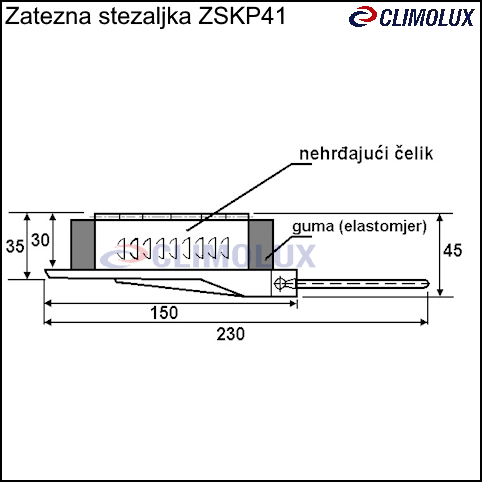

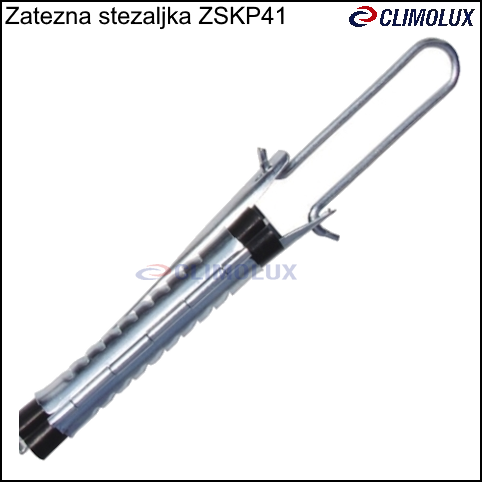

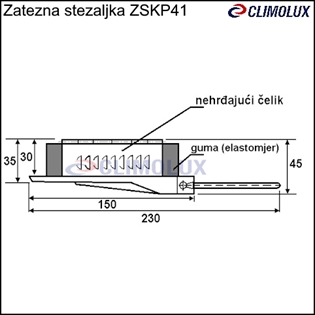

Insulated anchor clamp ZSKP416

Insulated anchor clamp ZSKP416
item-no.: 140191

product code	wire (mm2)	minimum breaking force	maximum strain	diameter over insulated conductor
140191	2x16; 4x16 mm2	3,0 kN	1,0 kN	7,0 - 7,8 mm2

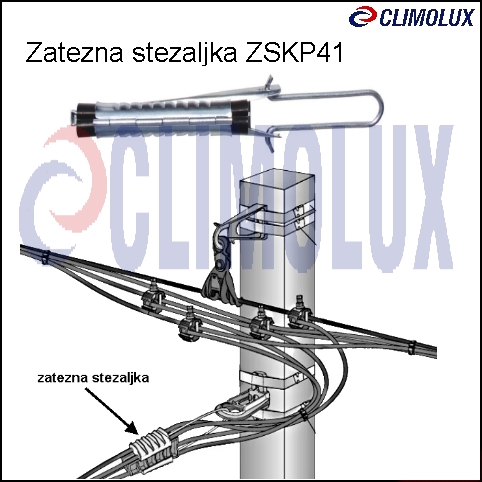

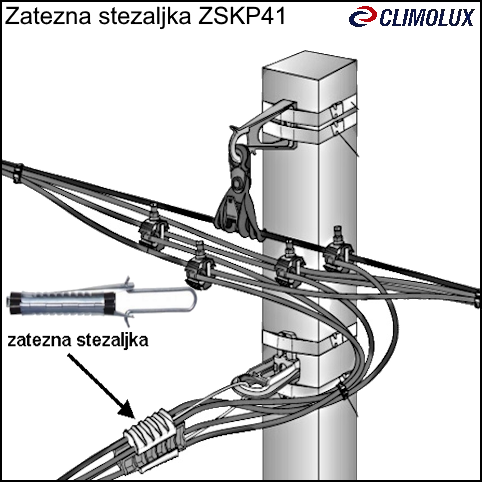

With insulated strain clamps the insulated conductor’s straining to the pole can be completed fast and easily, without using any other tool. The neutral wire has to be placed on the gap at the rubber end of the outfit, and the metal clamp has to be hanged onto the hook on the pole. During straining the rubber tightens on the wire; the wire’s weight creates the straining force.
 material:
-Stainless steel
-Elastomer (Rubber)
-UV resistant
